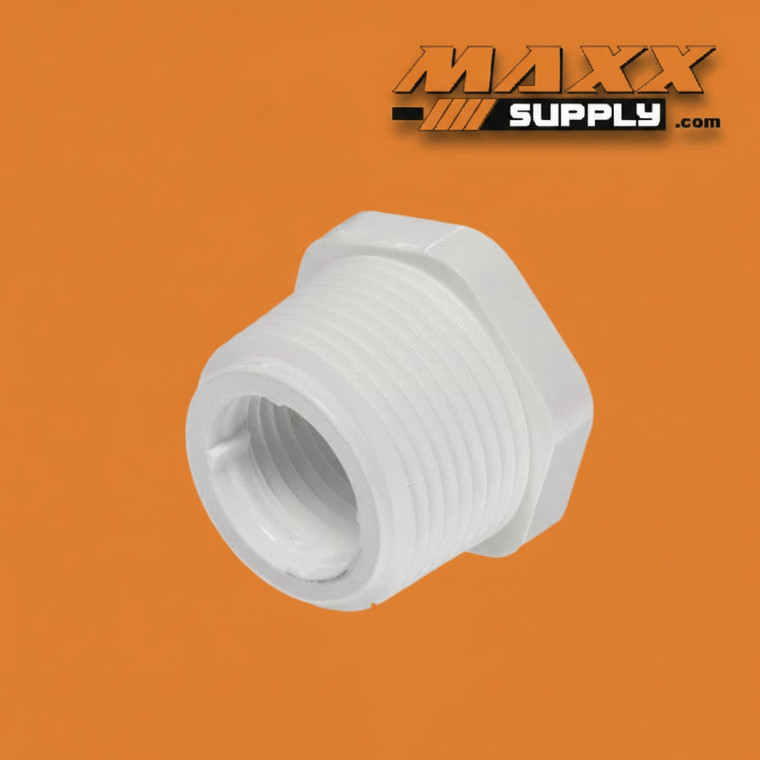

Threaded Reducer Bushing, MPT x FPT PVC Schedule 40 3/4" x 1/4" (439-098)

This 3/4" x 1/4" Schedule 40 PVC Hex Bushing (MPT x FPT) provides a compact, inline solution for reducing a 3/4" female-threaded port down to a 1/4" female-threaded instrument port connection in all-threaded commercial and light industrial PVC piping systems. Constructed in white Schedule 40 PVC with a hexagonal shoulder for wrench engagement during installation, it serves the specialized function of incorporating a pressure gauge tap, pressure transducer connection, temperature sensor port, sampling valve stub, or small-bore chemical injection port directly at any 3/4" female-threaded tee branch outlet, valve body FPT connection, manifold port, or distribution assembly female-threaded port — the most widely specified all-threaded fitting port size in residential and light commercial PVC distribution systems.

The 3/4" MPT exterior threads directly into any standard 3/4" FPT or FIP female-threaded fitting, valve body, tee branch outlet, or manifold connection, while the 1/4" FPT interior accepts any standard 1/4" male NPT-threaded instrument fitting, pressure gauge connection, sampling valve, chemical injection nipple, sensor port, or micro-bore service component for a pressure-tight mechanical connection when made up with thread sealant or PTFE tape. The hexagonal shoulder between the two threaded ends provides a wrench flat for controlled make-up torque — ensuring proper thread engagement at the 3/4" exterior diameter. The 1/4" FPT outlet is the industry-standard connection size for pressure gauges, pressure transducers, temperature sensors, sampling valves, and small-bore chemical injection ports throughout commercial and industrial PVC piping systems — making this the correct single-fitting solution wherever a standard instrument port must be incorporated at a 3/4" female-threaded port location in an all-threaded assembly without a separate adapter, nipple, or multi-piece transition at the instrument tap point. This MPT x FPT hex bushing is the all-threaded approach to instrument port incorporation and is the correct choice when the upstream 3/4" connection is a female-threaded port — distinct from the 838-098 (3/4" x 1/4" Schedule 80 Spigot x FPT Bushing, confirmed in this catalog session), which cements into a 3/4" socket fitting hub rather than threading into a female port, and from any 438 series counterpart at this size (Spigot x FPT if stocked), which also cements into a socket hub; the 439-098 is specifically the correct choice for all-threaded assemblies where the upstream port is a 3/4" female thread. At 3/4", the instrument port tap application is particularly common at valve body female-threaded ports, tee branch FPT outlets on all-threaded distribution manifolds, pump station valve assembly female-threaded connections, and irrigation system pressure monitoring tap points throughout the 3/4" all-threaded distribution assembly.

Rated to approximately 480 psi at 73°F (governed by the 3/4" MPT end), this bushing is suited for standard commercial and light industrial water distribution and irrigation service within its pressure class. Its PVC composition provides excellent resistance to corrosion, scale, chlorinated water, and a broad range of chemical exposures. NSF/ANSI 61 listing confirms suitability for potable water contact.

Install using a quality pipe thread sealant or PTFE tape on both the 3/4" MPT threads and the 1/4" male NPT threads of the mating downstream instrument or service component before engagement. Use the hex shoulder with an appropriately sized wrench to achieve proper make-up torque on the 3/4" MPT end. On the 1/4" FPT end, use PTFE tape — wrapping a minimum of two to three times in the thread direction — and confirm that the 1/4" male NPT component is started by hand and seated squarely before applying final torque; at 1/4", the shallow thread engagement depth makes cross-threading a more common installation error than at larger diameters. Avoid over-torquing at either end — PVC threads require hand-tight plus one to two turns; at 1/4", the engagement range before overtorque risk is particularly short. Derate pressure ratings for elevated temperatures per published derating curves.

Specifications:

Industries & Applications:

• Irrigation & Water Distribution — Incorporates 1/4" male-threaded pressure gauge taps, pressure transducer connections, and small-bore instrument stubs directly at 3/4" female-threaded tee branch outlets, valve body FPT ports, and manifold female-threaded connections in residential and light commercial irrigation pump station assemblies and all-threaded 3/4" distribution assemblies where instrument monitoring access must be built into female-threaded ports at the standard 1/4" NPT instrument connection size without a multi-piece adapter assembly
• Industrial Process Piping — Reduces 3/4" female-threaded ports on valve assemblies, tee branch outlets, manifold bodies, and equipment inlets to 1/4" male-threaded pressure transducer connections, temperature sensor ports, sampling valve stubs, and small-bore instrument supply connections in water treatment, chemical processing, and manufacturing facilities where instrument tap access at the industry-standard 1/4" NPT size must be incorporated at 3/4" female-threaded assembly ports throughout the all-threaded distribution layout
• Chemical Handling — Provides a corrosion-resistant all-threaded 3:1 inline reduction from 3/4" female-threaded ports to 1/4" male-threaded pressure monitoring instruments, sampling valves, chemical injection stubs, and metering component connections in systems conveying acids, caustics, fertilizer solutions, and other fluids incompatible with metal hex bushings at 3/4" valve body outlets and distribution manifold FPT connections
• Commercial Plumbing — Adapts 3/4" female-threaded ports on valves, manifold bodies, tee branches, and distribution assemblies to 1/4" male-threaded pressure gauge connections, test point stubs, and instrument taps in commercial building water supply systems where all-threaded PVC construction is specified and instrument monitoring access at the standard 1/4" NPT gauge connection size must be incorporated at 3/4" female-threaded assembly ports
• Water Treatment & Aquaculture — Used at filter housing female-threaded instrument ports, pump connection valve body FPT outlets, and treatment equipment assembly 3/4" female-threaded interfaces where a compact all-threaded reduction to a 1/4" male-threaded instrument, pressure monitoring component, or sampling valve is required with NSF/ANSI 61 compliance throughout
• HVAC & Mechanical Systems — Reduces 3/4" female-threaded ports on cooling tower pump valve assemblies, chilled water distribution manifold FPT connections, and chemically treated water system equipment interfaces to 1/4" male-threaded pressure sensor connections, gauge taps, and instrument ports within the Schedule 40 pressure rating class
