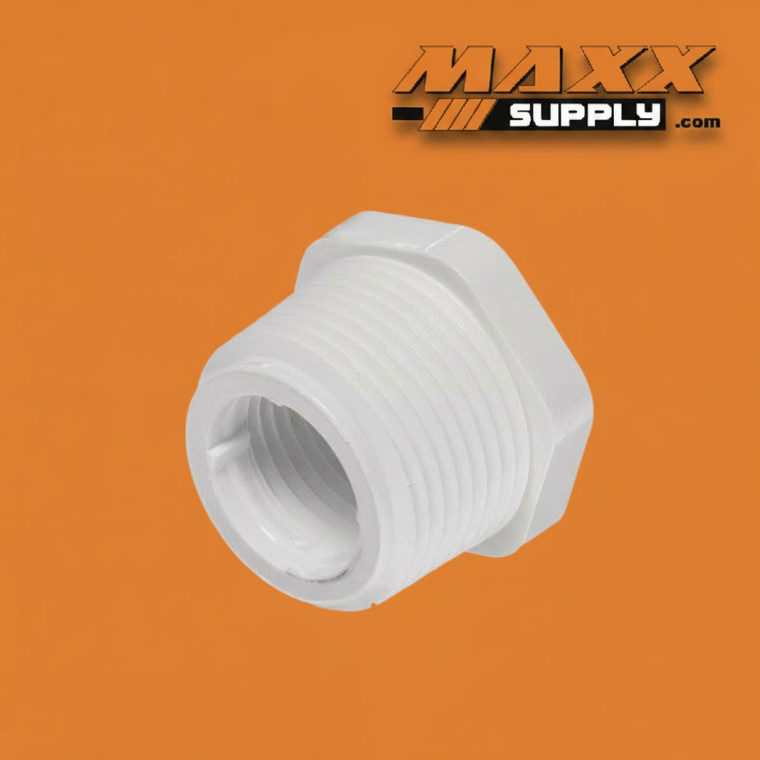

Threaded Reducer Bushing, MPT x FPT PVC Schedule 40 3/8" x 1/4" (439-052)

This 3/8" × 1/4" Schedule 40 PVC Threaded Reducer Bushing provides a compact, all-threaded one-step size reduction from a 3/8" female-threaded port down to a 1/4" female NPT outlet in a single fitting. The 3/8" MPT exterior threads into any compatible 3/8" FPT port — on a tee branch, manifold connection, gauge assembly fitting, or fine-bore threaded component — while the 1/4" FPT interior receives any compatible 1/4" male-threaded pressure gauge, transducer, thermowell, pressure switch, or instrument fitting on the reduced side. No solvent cement, primer, or cure time is required at either end.

The 1/4" FPT outlet is the application anchor for this bushing — the near-universal standard connection size for pressure gauges, pressure transducers, thermowells, pressure switches, flow switches, and virtually all small-bore industrial and commercial instrumentation. Wherever a 3/8" FPT port in a Schedule 40 PVC system must interface with any of these 1/4"-ported monitoring or control components, the 439-052 provides the most direct possible bridge — a single all-threaded fitting that reduces the 3/8" port to the correct 1/4" gauge-port size at the fitting face without intermediate adapters or pipe sections.

The 439-052 is the Schedule 40 counterpart to the 839-052 (3/8" × 1/4" Schedule 80 MPT × FPT flush bushing, previously written) at the identical size combination. Both accomplish the same 3/8"-to-1/4" all-threaded size reduction from a 3/8" FPT port to a 1/4" gauge outlet — the sole distinction is schedule. The 839-052 serves Schedule 80 PVC systems at the higher pressure rating associated with Schedule 80 wall thickness in dark gray PVC. The 439-052 serves Schedule 40 PVC systems in white PVC at the Schedule 40 pressure rating — the correct selection wherever the receiving 3/8" FPT port is in a Schedule 40 system and the Schedule 40 pressure rating is sufficient for the gauge tap application. Confirming the system schedule before selecting between the 439-052 and 839-052 ensures pressure rating consistency at the gauge port position.

The three-series differentiation at 3/8" × 1/4" establishes where the 439-052 sits within the full Schedule 40 bushing family at this size combination. The 439-052 is all-threaded — its 3/8" MPT end threads into a female-threaded 3/8" FPT port. If the upstream connection is a 3/8" slip socket rather than a threaded port, and the downstream connection must transition to a 1/4" threaded gauge outlet, a Schedule 40 438-series Spigot × FPT equivalent (if stocked) would cement into the socket and present the 1/4" FPT gauge outlet — the cement-inlet, threaded-outlet alternative at this size. If the downstream 1/4" connection is a cemented pipe run rather than a threaded gauge component, a Schedule 40 437-series Spigot × Slip equivalent would provide the all-cement alternative. The 439-052 is specifically correct when the upstream port is female-threaded and the downstream connection is a 1/4" male-threaded gauge or instrument component.

The flush bushing style produces a compact, low-profile assembly at the 3/8" port face. The 3/8" MPT body seats within the receiving FPT port, and the 1/4" FPT outlet presents cleanly at the fitting face — keeping the gauge or instrument connection tight to the fitting body and avoiding the protruding hex shoulder of a standard hex bushing in manifold assemblies and gauge panels where adjacent connections limit clearance.

At the 3/8" × 1/4" size combination, the application niche is narrow and well-defined: fine-bore instrument supply manifolds, gauge panel assemblies, small-bore analytical piping, and compact threaded process connections in lighter-duty Schedule 40 PVC systems where 3/8" FPT ports are present and 1/4" NPT gauge connections are required. In residential and light commercial systems where Schedule 40 is the specified pipe schedule throughout the system — and where pressure monitoring, gauge taps, or small instrument connections are installed at 3/8" FPT positions — the 439-052 provides the same functional gauge-port reduction delivered by the 839-052 in Schedule 80 systems.

Manufactured in white Schedule 40 PVC, this bushing delivers reliable performance across residential, commercial, and light industrial threaded piping applications. PVC's resistance to acids, bases, salts, chlorine, and common process fluids provides long service life where metal bushings would corrode, seize on threads, or contaminate fine-bore instrument connections. NSF/ANSI 61 and NSF/ANSI 14 listings confirm suitability for potable water contact.

Apply two to three wraps of PTFE tape to the 3/8" MPT exterior before threading into the receiving port — hand-tighten plus one to two turns using a wrench on the bushing body. Apply PTFE tape to the male threads of the gauge or instrument before engaging the 1/4" FPT outlet — 1/4" NPT connections should be hand-tight plus one turn only; this is the smallest standard NPT thread size and the most vulnerable to over-torque cracking on both the bushing outlet and the instrument body. Apply published pressure derating factors for service temperatures above 73°F.

Specifications:

Industries & Applications:

• Pressure Gauge & Instrument Tap Connections — The primary and defining application: reduces a 3/8" FPT port on a Schedule 40 PVC tee, manifold fitting, gauge assembly, or fine-bore threaded component directly to the 1/4" NPT standard connection for pressure gauges, pressure transducers, thermowells, and pressure switches in lighter-duty residential, commercial, and light industrial Schedule 40 systems where the 3/8" FPT gauge tap position requires the standard 1/4" NPT instrument connection
• Residential & Light Commercial Irrigation — Provides a compact all-threaded 3/8"-to-1/4" gauge port reduction at pressure gauge tap positions on Schedule 40 PVC irrigation system manifolds, filter station gauge ports, and pump station pressure monitoring connections in residential and light commercial irrigation systems where pressure gauges or pressure switches monitoring system pressure connect at 3/8" FPT ports in the Schedule 40 threaded assembly
• Commercial Plumbing — Reduces 3/8" FPT gauge tap ports on Schedule 40 PVC manifold assemblies, pressure monitoring tee positions, and mechanical room instrument tap connections to 1/4" NPT gauge and transducer fittings in commercial building water distribution and mechanical system Schedule 40 piping where pressure monitoring instruments connect at 3/8" FPT positions
• Pool, Spa & Aquaculture — Installs at 3/8" FPT gauge tap positions on Schedule 40 PVC filter manifolds, pump outlet pressure gauge connections, chemical dosing system monitoring ports, and recirculation system pressure monitoring assemblies in residential and commercial pool and spa installations where 1/4" NPT pressure gauges and switches connect at 3/8" FPT port positions
• Water & Wastewater Treatment — Reduces 3/8" FPT instrument and monitoring connection ports to 1/4" NPT gauge and transducer fittings on Schedule 40 PVC process headers, chemical feed manifolds, and secondary distribution assemblies in light-duty municipal and industrial water treatment facilities where 1/4" NPT pressure monitoring instruments tap into 3/8" FPT positions in the Schedule 40 threaded system
• Light Industrial Process Piping — Provides a compact all-threaded 3/8"-to-1/4" size reduction at gauge tap and instrument connection positions on Schedule 40 PVC process manifolds, fine-bore distribution assemblies, and threaded instrument connection headers in light industrial and chemical handling systems where 1/4" NPT-ported pressure monitoring equipment interfaces with 3/8" FPT port positions in the Schedule 40 system
• Fine-Bore Instrument & Analytical Connections — Used at 3/8" FPT port positions on fine-bore gauge panel assemblies, analytical instrument supply headers, and compact threaded instrument manifolds in laboratory, process monitoring, and analytical system Schedule 40 PVC piping where the 3/8"-to-1/4" gauge port reduction provides the standard 1/4" NPT instrument connection at the smaller of the two fine-bore pipe sizes
