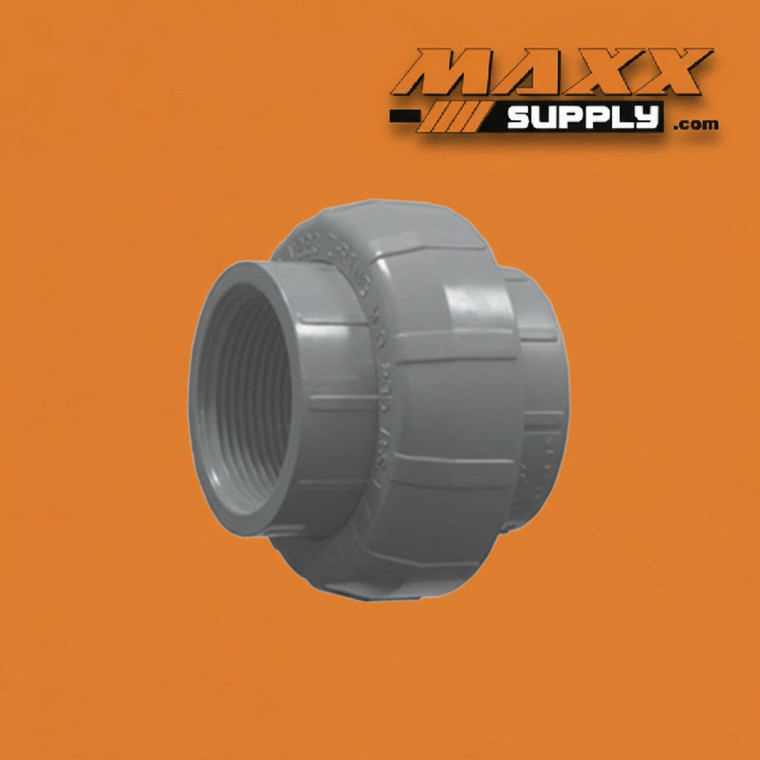

Union (O-Ring Type), FPT x FPT PVC Schedule 80 4" (898-040)

The 4" PVC Schedule 80 Union (898-040) is an O-ring sealed, FPT x FPT fitting that provides a fully removable, pressure-rated disconnect point in a 4" threaded Schedule 80 PVC pipeline — delivering the serviceability, equipment access, and maintenance flexibility that a permanent solvent-weld or threaded joint cannot provide. As an O-ring type union, the 898-040 seals the mating faces with a captive elastomeric O-ring rather than a flat face-to-face gasket or thread compound, producing a reliable, repeatable seal that can be disconnected and reassembled multiple times without seal degradation, thread wear, or the need for sealant reapplication at the union joint.

The FPT x FPT connection configuration means both the female body and the male tail piece thread directly onto NPT male pipe or fittings on either side of the union — making the 898-040 compatible with any existing threaded Schedule 80 PVC piping assembly and eliminating the need for additional threaded adapters to transition from solvent-weld to union installation. The threaded body and tail piece are held together by a large-diameter union nut that draws the O-ring seal faces into compression when tightened, creating a leak-free joint that can be fully disassembled by hand or with strap wrench without disturbing either of the threaded connections on either side of the union.

At 4" diameter, this union handles a substantial flow volume and line pressure — making it a structurally and hydraulically significant fitting in any Schedule 80 system where it is installed. The 898-040 is most commonly specified at equipment isolation points, pump connections, filter vessel inlets and outlets, chemical injection skid boundaries, valve maintenance locations, and instrumentation access points where the ability to disconnect the piping without cutting pipe or breaking permanent joints is a recurring operational requirement rather than an emergency-only consideration.

Manufactured from gray PVC compound meeting ASTM D2467 dimensional standards, the 898-040 delivers Schedule 80's higher pressure rating, increased wall thickness, and broad chemical resistance to acids, caustics, solvents, and oxidizing fluids across the full union body — ensuring that the disconnect fitting itself does not become the weak point in a Schedule 80 chemical or process piping system. The O-ring material should be selected or verified for compatibility with the specific fluid service; standard O-rings are typically EPDM or Viton, each suited to different chemical exposure conditions.

Specifications:

Apply PTFE tape or pipe thread sealant to all male NPT threads before assembly on the FPT connections. Do not overtighten threaded connections — hand-tight plus one to two turns is the standard assembly practice for PVC NPT joints. Inspect the O-ring for nicks, cuts, or chemical degradation at each reassembly; replace if any surface damage is present. Verify O-ring material compatibility with the fluid service prior to installation — EPDM is suitable for water and many mild chemicals; Viton is recommended for hydrocarbon, solvent, or aggressive chemical service. Pressure-temperature derating applies at elevated service temperatures per ASTM standards.

Industries & Applications:

• Chemical Processing & Transfer — Equipment isolation and maintenance disconnect points on 4" Schedule 80 chemical supply headers, reactor inlet and outlet connections, chemical storage tank feeds, and metering skid boundaries where repeated service access is required without cutting pipe or breaking permanent joints in corrosive acid, caustic, or oxidizing fluid service
• Industrial Process Piping — Pump suction and discharge connections, filter vessel inlet and outlet ports, heat exchanger connections, and process equipment isolation points where a pressure-rated, reusable union provides maintenance access and equipment changeout capability without disrupting the surrounding permanent piping
• Water & Wastewater Treatment — Chemical feed skid connections, dosing pump inlet and outlet lines, UV disinfection unit connections, and filtration system isolation points where Schedule 80 construction is specified and periodic equipment service, cleaning, or replacement requires a reliable disconnect point
• Semiconductor & Electronics Manufacturing — Ultra-pure water (UPW) and chemical distribution systems where Schedule 80 PVC is the material of record and union disconnect points are required at tool connections, filter housing ports, chemical cabinet boundaries, and equipment maintenance locations requiring cleanroom-compatible, repeatable seal integrity
• Plating & Metal Finishing — Acid, caustic, and process chemical line disconnect points at rectifier connections, filter press inlets, tank agitation feed lines, and chemical metering equipment boundaries where repeated service access in aggressive chemical environments demands a union fitting that reseals reliably without sealant or thread compound
• Industrial Cooling & HVAC Systems — Chemical treatment injection skid connections, side-stream filtration unit ports, and cooling tower equipment boundaries where Schedule 80 union fittings provide maintenance access for seasonal equipment service, chemical system modifications, or component replacement without system draining and pipe cutting
• Power Generation Facilities — Demineralized water system equipment connections, chemical treatment skid boundaries, and cooling system isolation points where large-bore Schedule 80 unions provide pressure-rated, repeatable disconnect access for planned maintenance, equipment replacement, and system modification activities
• Pulp, Paper & Food Processing — CIP (clean-in-place) system connections, chemical delivery skid boundaries, and process equipment isolation points where O-ring union seals provide hygienic, repeatable disconnect capability that supports regular cleaning, inspection, and equipment service without permanent piping disruption
