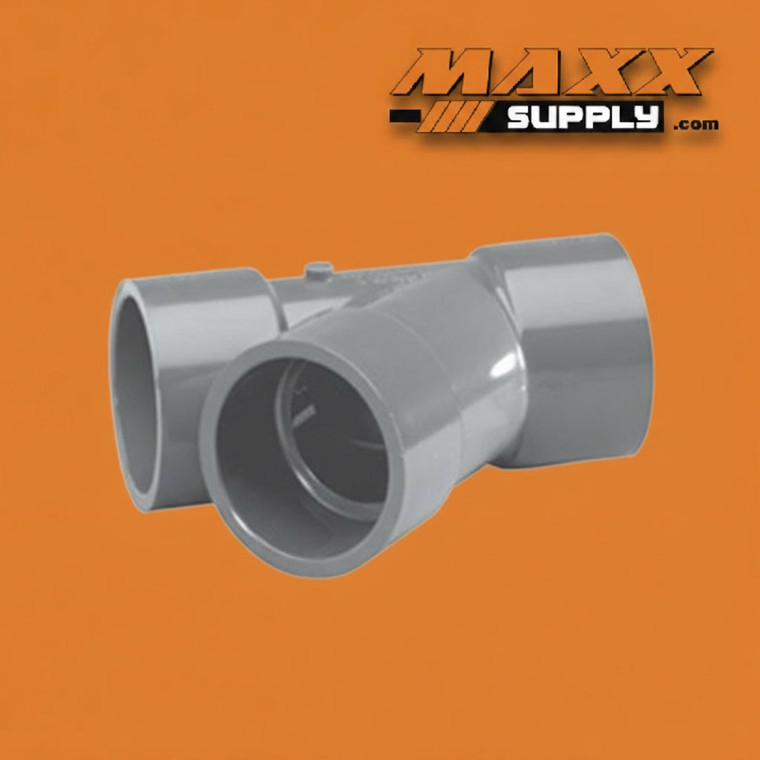

Wye, Slip x Slip x Slip PVC Schedule 80 6" (875-060)

The 6" PVC Schedule 80 Wye (Slip x Slip x Slip), Part #875-060, is a heavy-wall, three-port branch fitting that introduces a lateral branch connection at a 45-degree angle from the main run — a fundamentally different flow geometry from the 90-degree branch of a standard tee. Manufactured from Type I, Grade I PVC compound to ASTM D2467 specifications, this fitting delivers Schedule 80's elevated pressure rating, increased wall thickness, and broad chemical resistance, making it the correct specification for industrial process, chemical handling, and high-demand municipal infrastructure where both branch geometry and material specification are critical engineering considerations.

The defining characteristic of the wye fitting is its 45-degree branch angle. Where a standard tee introduces flow into or from a branch at 90 degrees to the run — generating turbulence, elevated head loss, and abrupt velocity changes at the junction — the wye's angled branch allows flow to enter or exit the main run in a gradual, directionally aligned transition. This geometry substantially reduces turbulence at the branch junction, lowers head loss through the fitting, and minimizes the localized pressure drop that 90-degree branch connections impose on the system. In applications where flow efficiency, system pressure preservation, and long-term fitting integrity under dynamic flow conditions are design priorities, the wye is the hydraulically superior alternative to a standard tee at equivalent pipe size.

At 6 inches in Schedule 80, this fitting occupies a size range where the hydraulic advantages of wye geometry and the structural advantages of Schedule 80 wall thickness converge meaningfully. Six-inch process and utility lines in industrial and municipal systems frequently operate under sustained pressure, continuous flow, and chemically aggressive conditions — exactly the service profile where a standard tee's turbulence-generating 90-degree branch geometry can accelerate wear at the fitting body over time, and where Schedule 40 wall thickness may be insufficient for the operating environment. Part #875-060 addresses both concerns in a single purpose-built fitting.

The slip x slip x slip (plain end) configuration accepts solvent cement across all three ports, producing permanent, chemically bonded joints at the run and 45-degree branch connections. The symmetrical 6-inch size across all three ports means this fitting can function as a true wye in either collection or distribution mode — aggregating two incoming flows into a single downstream run, splitting a single supply into a run and an angled branch, or serving as a lateral branch takeoff from an existing 6-inch main with minimal disruption to the primary flow stream.

Specifications:

Note: Pressure ratings decrease with elevated temperatures and are further influenced by dynamic flow conditions at the branch junction. While the wye's 45-degree branch geometry substantially reduces turbulence and head loss compared to a standard tee, hydraulic design should still account for minor pressure loss through the fitting body, particularly in high-velocity or continuously pressurized systems. In drainage and gravity-flow applications, the wye's branch angle provides superior flow alignment compared to a tee, reducing solids accumulation risk at the junction. Consult ASTM D2467 derating curves and applicable engineering specifications before installation in elevated-temperature or high-pressure service.

Industries & Applications:

• Industrial Process Piping — Low-turbulence branch connections in chemical plants, refineries, and manufacturing facilities where Schedule 80 is the baseline specification and the 45-degree branch geometry is preferred over a standard tee to minimize head loss, reduce localized turbulence at the junction, and preserve system pressure through the branch connection.
• Chemical Handling & Water Treatment — Branch connections in chemical distribution headers, treatment plant process lines, and dosing system piping where PVC's resistance to acids, caustics, chlorinated water, and other aggressive media is a primary material driver and Schedule 80 wall thickness is required by engineering specification.
• Municipal Water Distribution — Lateral branch takeoffs on 6-inch distribution mains where the wye's low-turbulence geometry is specified over a standard tee to preserve pressure and reduce fitting wear in continuously pressurized systems, particularly in high-flow or high-cycle service.
• Wastewater & Drainage Infrastructure — Gravity drainage, sanitary lateral connections, and force main branch assemblies where the wye's 45-degree branch angle provides superior flow alignment compared to a 90-degree tee branch, reducing solids deposition risk at the junction and maintaining smoother flow transition in both gravity and pressurized service.
• Pump Station Piping — Suction and discharge manifold branch connections at pump stations where minimizing head loss and turbulence at branch junctions is a pump efficiency and NPSH design priority, and where Schedule 80 specification is required by facility or engineering standards.
• Irrigation & Agricultural Systems — High-pressure mainline branch takeoffs on large-scale irrigation systems where the wye's reduced head loss through the branch connection is a meaningful efficiency advantage over standard tees at equivalent pipe size, particularly in systems with long distribution runs where cumulative head loss through fittings is a design constraint.
• HVAC & Mechanical Systems — Chilled water, condenser water, and heating hot water loop branch connections in large commercial and industrial facilities where 6-inch distribution mains require a low-turbulence branch fitting and Schedule 80 is specified for system pressure or facility standards compliance.
• Power Generation & Heavy Industrial — Cooling water, service water, and chemical feed system branch connections at process headers in power plants, petrochemical facilities, and heavy manufacturing installations where Schedule 80 PVC wye fittings are a standard component in chemical-resistant process piping assemblies.
• Aquaculture & Recirculating Systems — Recirculating aquaculture system (RAS) manifold branch connections where low-turbulence flow splitting or collection at the wye junction supports water quality management and reduces mechanical stress on fish and aquatic organisms sensitive to turbulent flow conditions.
• Mining & Aggregate Processing — Process water distribution, dewatering discharge, and chemical feed branch connections in aggressive or abrasive operating environments where the wye's smooth internal flow geometry reduces localized wear at the branch junction compared to a standard 90-degree tee.
