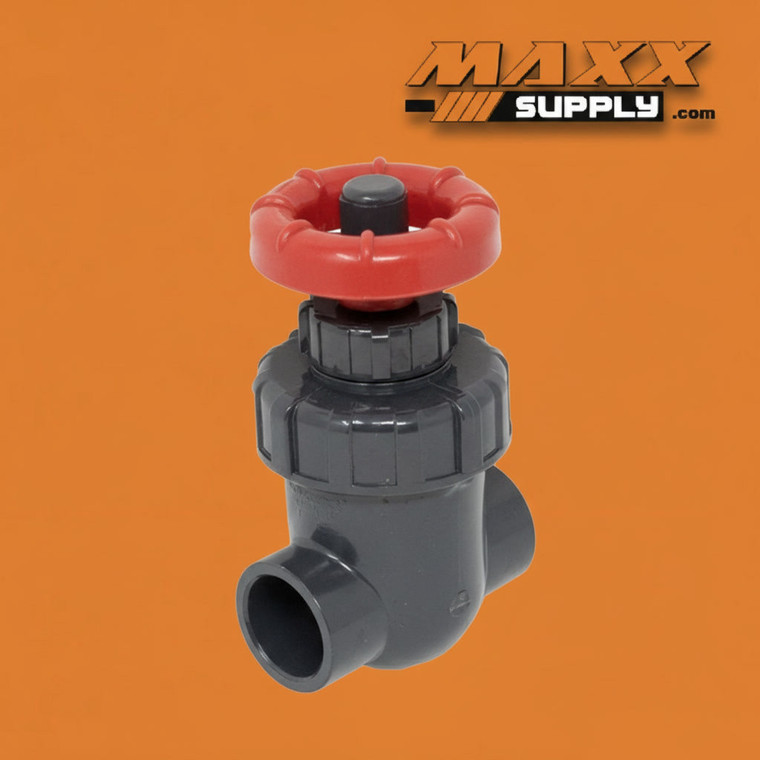

1-1/2" Spears Gate Valve Gray PVC Socket (2022-015)

This 1-1/2" PVC gate valve delivers reliable on/off flow control for demanding industrial and commercial piping systems. Constructed from Schedule 80 PVC with socket (slip) connections, it provides a clean, leak-resistant solution for applications where corrosion resistance and full-bore flow matter. The EPDM elastomer seals offer excellent chemical compatibility and long service life, while the non-rising stem design keeps the footprint compact and protects internal threads from debris. Built for systems that require minimal flow restriction in the open position, this valve is a dependable workhorse for water treatment, irrigation, and chemical process lines.

Key Features

• Schedule 80 PVC body for high strength and superior corrosion resistance
• Socket (slip) end connections for permanent, low-leak solvent-weld installation
• EPDM seals and seat for broad chemical compatibility and dependable sealing
• Non-rising stem design saves vertical clearance and shields stem threads
• Full-bore gate provides minimal pressure drop and unrestricted flow when open
• Lightweight construction simplifies handling and installation versus metal valves
• Smooth handwheel operation for straightforward open/close control

Specifications

• Nominal Size: 1-1/2 in. (1.5")
• Valve Type: Gate Valve
• Body Material: PVC, Schedule 80 (Type I, Cell Class 12454)
• End Connection: Socket / Slip (solvent weld)
• Seal / Seat Material: EPDM
• Stem Design: Non-rising stem
• Operation: Manual handwheel
• Maximum Pressure Rating: 150 PSI at 73°F (water, non-shock)
• Temperature Range: 32°F to 140°F (typical PVC service)
• Flow Direction: Bi-directional

Industries & Applications

• Water and wastewater treatment plants
• Agricultural and commercial irrigation systems
• Chemical processing and dosing lines
• Industrial process water distribution
• Aquaculture and aquarium filtration systems
• Plating, etching, and other corrosive-fluid handling
• Pool, spa, and water feature plumbing
