1-1/2" x 1-1/2" x 1/4" x 20' A36 HR ANGLE
$30.70
Call for more information: 803-329-6299
Click here for map: 1439-51 Dave Lyle Blvd, Rock Hill, SC. 29730

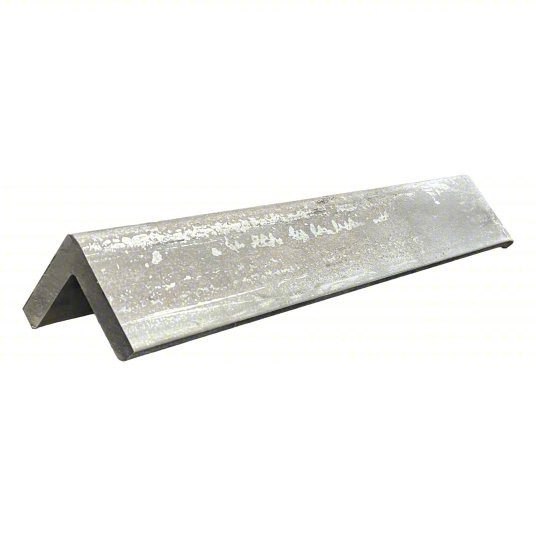

This 1-1/2" x 1-1/2" x 1/4" hot rolled A36 steel angle is a compact equal-leg structural profile delivering reliable strength in a small cross-section. The 1/4" wall thickness provides meaningful rigidity relative to the leg width, making this one of the heavier wall options available in the 1-1/2" leg size — well-suited for applications requiring load transfer, bracket fabrication, or weldment framing where a lighter gauge angle would be undersized.
Produced to ASTM A36, this angle meets the most widely recognized structural carbon steel specification in North America. A36 offers a minimum yield strength of 36,000 psi and minimum tensile strength of 58,000–80,000 psi, providing predictable, code-referenced mechanical properties for structural and fabrication applications. The hot rolled process produces the characteristic mill scale surface finish and slightly rounded inside corner radius typical of structural angle — distinguished from architectural angle by its looser dimensional tolerances and heavier corner geometry, both appropriate for structural service.
Hot rolled A36 angle wields excellently using MIG, TIG, and stick (SMAW) processes and machines, drills, and cuts readily with standard shop equipment. It accepts welded, bolted, and riveted connections and is compatible with standard structural coatings following surface preparation. The 20-foot bar length suits both shop fabrication and field installation while minimizing splice requirements on longer runs.
At this leg size and wall thickness, this angle is commonly used in secondary and light primary structural roles, equipment fabrication, and general ironwork rather than in primary building frames, where larger sections are typically required.
Specifications:
| Attribute | Value |
|---|---|
| Leg Size | 1-1/2 in × 1-1/2 in (equal leg) |
| Wall Thickness | 1/4 in (0.250 in) |
| Length | 20 ft (240 in) |
| Profile Type | Hot Rolled Structural Angle |
| Material | A36 Carbon Steel |
| Surface Finish | Hot Rolled Mill Scale |
| Inside Corner | Standard Structural Radius |
| Cross-Sectional Area | 0.688 in² |
| Weight (per bar) | Approx. 1.23 lb/ft × 20 ft ≈ 24.6 lbs |
| Yield Strength (min) | 36,000 psi |
| Tensile Strength (min) | 58,000 psi |
| Governing Standard | ASTM A36 |
| Designation | L 1-1/2 × 1-1/2 × 1/4 |
Industries & Applications:
A36 hot rolled structural angle in this size is a staple across fabrication shops, construction trades, and industrial maintenance operations:
- Structural Fabrication — bracing, gusset supports, secondary framing members, and light primary structural connections
- Equipment & Machine Frames — skid bases, conveyor supports, equipment legs, and machinery enclosure framing
- Construction & Ironwork — lintels, stair stringers, ladder rungs, handrail brackets, and mezzanine framing components
- Agricultural & Industrial Trailers — frame reinforcement, cross-members, and mounting brackets
- Shelving & Racking Systems — angle iron uprights, shelf supports, and pallet rack repair stock
- General Welding & Fabrication — brackets, cleats, clips, weld-on tabs, and miscellaneous ironwork
- Maintenance & Repair — replacement structural members, patch framing, and field repair stock across industrial and commercial facilities
