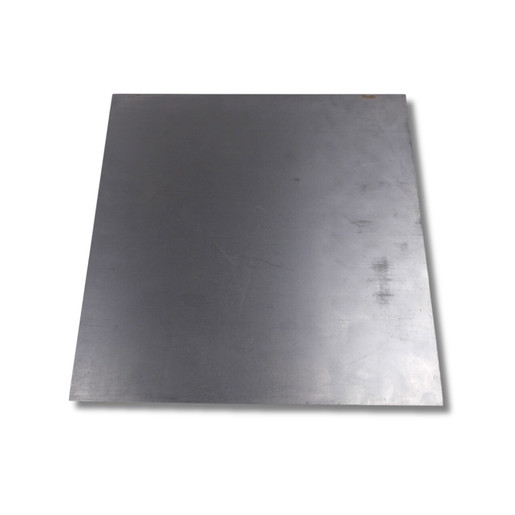

10 GAUGE X 48" X 96" A569 HOT ROLLED SHEET
$93.38
Call for more information: 803-329-6299
Click here for map: 1439-51 Dave Lyle Blvd, Rock Hill, SC. 29730
Hot rolled steel sheet in 10 gauge (0.1345" nominal thickness) offers a versatile, cost-effective flat stock solution for a wide range of fabrication and structural applications. Produced through a high-temperature rolling process, hot rolled sheet is characterized by its scaled mill finish surface and slightly rounded edges — properties that make it well-suited for applications where surface aesthetics are secondary to structural performance and ease of workability.
This 4' x 8' sheet format is the industry-standard full-sheet size, providing a manageable panel for shop fabrication, field cutting, or direct installation. The 10 gauge specification delivers a balance of rigidity and formability, handling welding, cutting, bending, and drilling with conventional metalworking equipment. Hot rolled sheet is readily weldable using MIG, TIG, and stick processes, and accepts standard primers and coatings after surface preparation.
Note: Hot rolled sheet carries a natural mill scale finish resulting from the high-temperature rolling process. For applications requiring tighter tolerances, smoother surface finish, or closer dimensional control, cold rolled sheet should be considered as an alternative.
Specifications:
| Attribute | Value |
|---|---|
| Material | Low Carbon Hot Rolled Steel |
| Gauge | 10 GA |
| Nominal Thickness | 0.1345 in |
| Thickness Tolerance | ±0.007 in (ASTM A1011 standard) |
| Sheet Size | 4 ft × 8 ft (48 in × 96 in) |
| Weight (per sheet) | Approx. 21.8 lbs/sq ft × 32 sq ft ≈ 218 lbs |
| Surface Finish | Hot Rolled Mill Scale |
| Edge Condition | Sheared / Mill Edge |
| Standard | ASTM A1011 CS Type B (Commercial Steel) |
| Temper | As-Rolled |
Weight calculated at 40.8 lbs/sq ft per inch of thickness × 0.1345" × 32 sq ft. Actual shipping weight may vary slightly by mill.
Industries & Applications:
Hot rolled steel sheet in 10 gauge finds broad use across industrial, construction, and manufacturing sectors, including:
- General Fabrication — brackets, gussets, base plates, enclosures, and structural supports
- Agricultural Equipment — equipment panels, trailer floors, loader components, and repair stock
- Construction & Infrastructure — floor plates (smooth), lintels, frame reinforcement, and column covers
- HVAC & Mechanical — equipment bases, curbs, housings, and structural transitions
- Automotive & Transportation — frame plates, running boards, bed liners, and underbody panels
- Industrial Maintenance & Repair — patch plates, wear surfaces, skid decking, and machine guards
- Custom Metal Fabrication Shops — general-purpose flat stock for custom weldments and structural builds
