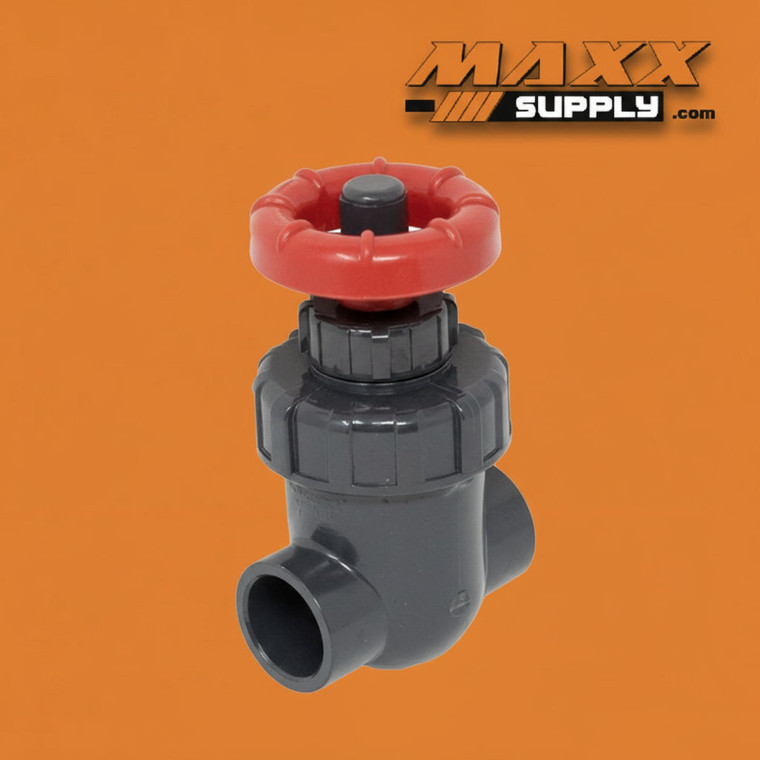

3/4" Spears Gate Valve Gray PVC Socket (2022-007)

This 3/4" PVC gate valve delivers reliable on/off flow control for industrial and commercial piping systems where corrosion resistance and full-bore flow matter. Constructed from Schedule 80 PVC with socket (slip) connections, it offers a clean, leak-resistant solvent-weld installation in a compact, lightweight design well-suited to tighter runs and branch lines. The EPDM elastomer seals provide excellent chemical compatibility and long-term sealing performance, while the non-rising stem design conserves vertical clearance and protects the stem threads from debris. Built for minimal flow restriction in the open position, this valve is a dependable choice for water treatment, irrigation, and chemical process lines.

Key Features

• Schedule 80 PVC body for high strength and superior corrosion resistance
• Socket (slip) end connections for permanent, low-leak solvent-weld installation
• EPDM seals and seat for broad chemical compatibility and dependable sealing
• Non-rising stem design saves vertical clearance and shields stem threads
• Full-bore gate provides minimal pressure drop and unrestricted flow when open
• Compact, lightweight construction ideal for branch lines and tight installations
• Smooth handwheel operation for straightforward open/close control

Specifications

• Nominal Size: 3/4 in. (0.75")
• Valve Type: Gate Valve
• Body Material: PVC, Schedule 80 (Type I, Cell Class 12454)
• End Connection: Socket / Slip (solvent weld)
• Seal / Seat Material: EPDM
• Stem Design: Non-rising stem
• Operation: Manual handwheel
• Maximum Pressure Rating: 150 PSI at 73°F (water, non-shock)
• Temperature Range: 32°F to 140°F (typical PVC service)
• Flow Direction: Bi-directional

Industries & Applications

• Water and wastewater treatment plants
• Agricultural and commercial irrigation systems
• Chemical processing and dosing lines
• Industrial process water distribution
• Aquaculture and aquarium filtration systems
• Plating, etching, and other corrosive-fluid handling
• Pool, spa, and water feature plumbing
